High Quality HDPE Microduct Low Friction Silicone Duct for Fiber Optical Cable Blowing Blowing Distance up 1000m Network Use

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry
Products Description

Product description

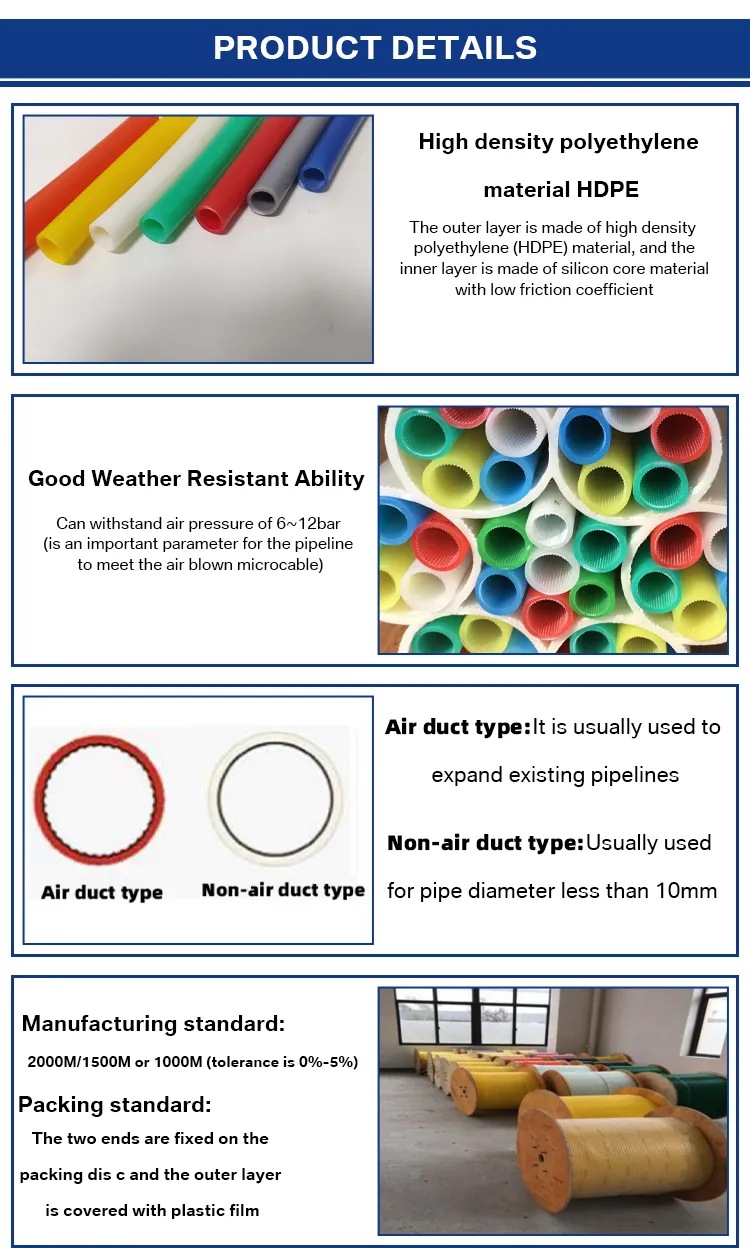

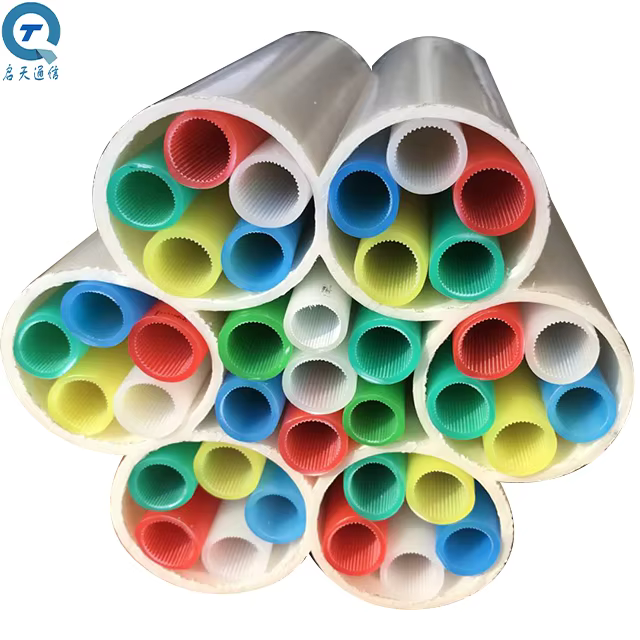

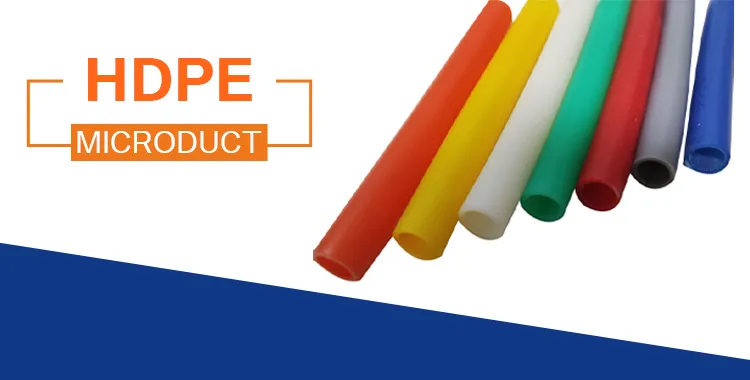

HDPE Microduct for air blowing fibers to be installed by air jetting. The inner microduct is designed to be flexible and lightweight, yet durable and easy to handle. The microduct has suitable low friction characteristics on the inside surface.
The inner wall of the pipe with the same permanent solid lubricating layer silicon core production synchronous extrusion, some specifications of the lining of the tube with longitudinal guide rib groove structure, further reduces the friction coefficient of the inner wall of the pipe, in order to facilitate the air blowing cable.
Raw material:


HDPE of a high-molecular type with the following parameters is used for production of the microduct:


Melt flow index
0.1~ 0.3 g/10 minutes (190 C , 2.16KG)
EN ISO 1133


Density:
Min. 0.940 g/cm3
ISO 1183


Tensile strength at yield:
Min. 21MPa
ISO 527


l Elongation at the break
Min 350%
ISO 527


l Environmental stress crack
resist (F50)
Min. 350 hours
ISO 4599


Company Profile

Presenting the Qitian High Quality HDPE Microduct Reduced Rubbing Silicone Air duct, the perfect remedy for your Fiber Optical Cable Television Blowing needs.

Our Microduct is made of High Thickness Polyethylene (HDPE) material, a solid and durable material that's ideal for protecting your fiber optic cords versus ecological factors such as moisture, UV radiation and temperature level changes. The Reduced Rubbing Silicone Air duct interior of our Microduct provides a smooth and easy path for the fiber optic cords to travel through, decreasing any rubbing that may cause problems to the cable television throughout the installments process.

Amongst the standout features of our item is its Blowing Range. Our HDPE Microduct Reduced Rubbing Silicone Air duct is made to be installed over cross countries, with a Blowing Range of up to 1000m. This is ideal for system use, since it permits the installation of fiber optic cable television over cross countries without the requirements for expensive and building and constructions work is taxing.

We are happy to express that our Microduct is of top quality, with a smooth and continuous interior that offers a trustworthy path for your fiber optic cable television. Our item can be highly immune to impact, production it perfect for used in high traffic locations where the cable television could be vulnerable to problems.

Highly functional, permitting it to be easily controlled and installed in limited locations along with its longevity and lengthy blowing range. This flexibility also provides convenience of minds, since it helps to ensure that the fiber optic cable television is securely and strongly set up at perpetuities.

Appropriate for both interior and use is exterior production it functional and ideal for lots of applications. It's also easy to handle and install, decreasing the quantity of time needed for installation and conserving you time is valuable money.

Trust Qitian to provide an economical and efficient remedy for your fiber optic cable television installation needs.
