Haul off Machine for PVC Pipe Wire and Cable Production Fiber Optic FTTX Network Equipment for Fiber Use

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry
Product Description

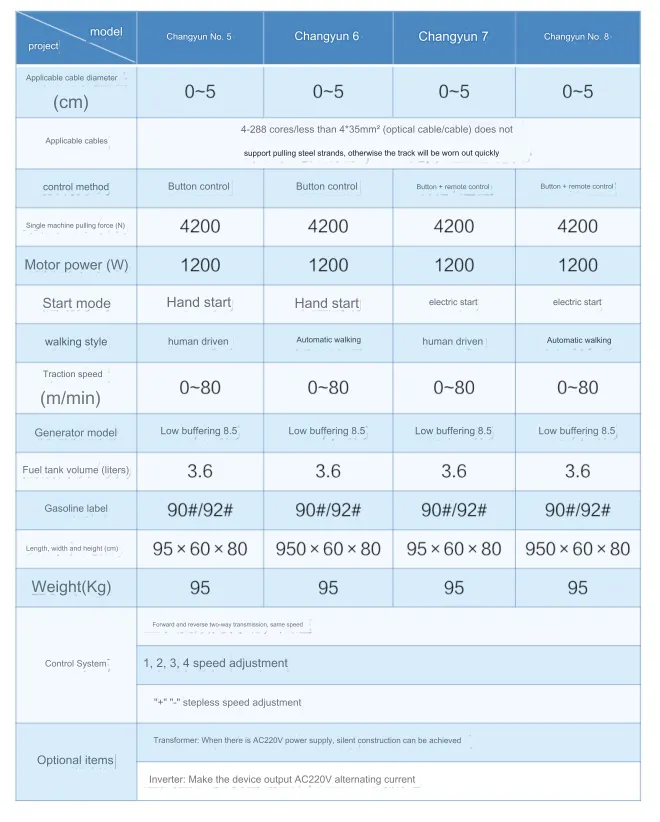

Specification
item
value
Model Number
N7
Type
Changyun No. 7 optical cable tractor
Place of Origin
China
Brand Name
OEM
Use
FTTX
Warranty Time
2 YEARS
Network
Wired LAN, ONVIF, GPRS
Thrust:
0-500N
Push Speed:
0-120m/min

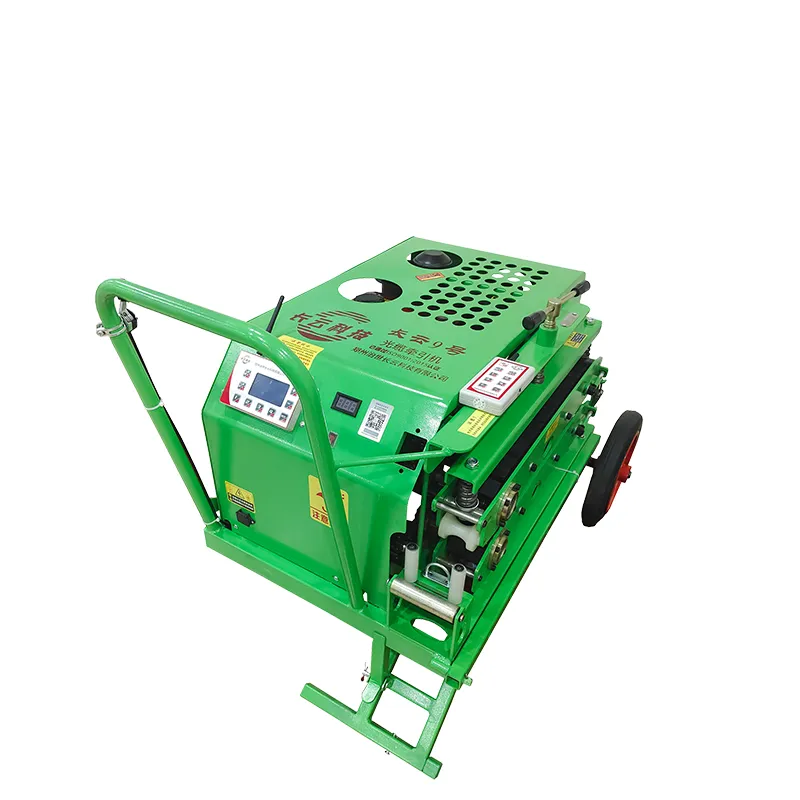

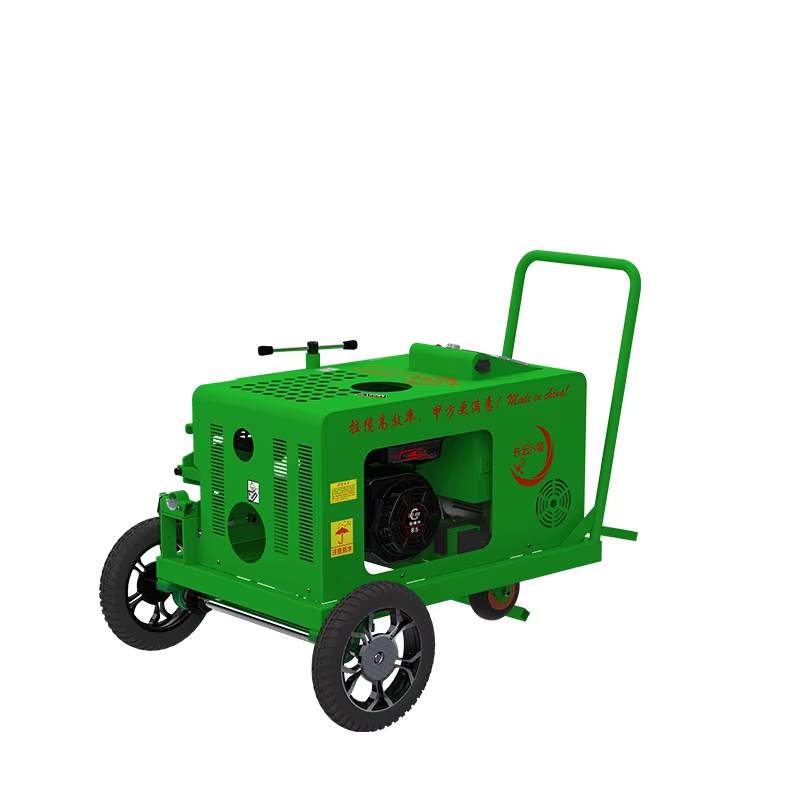

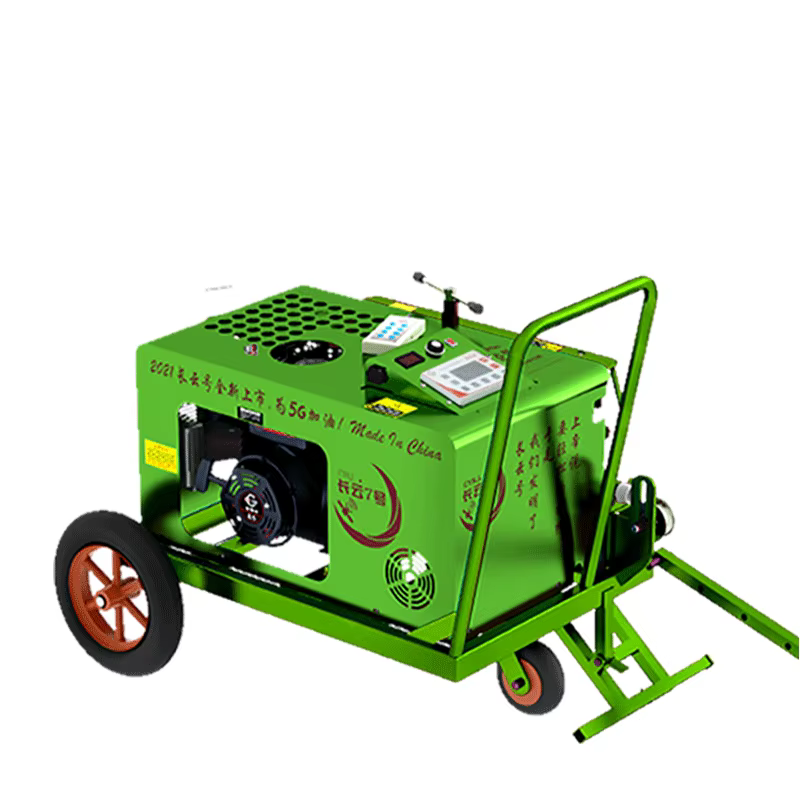

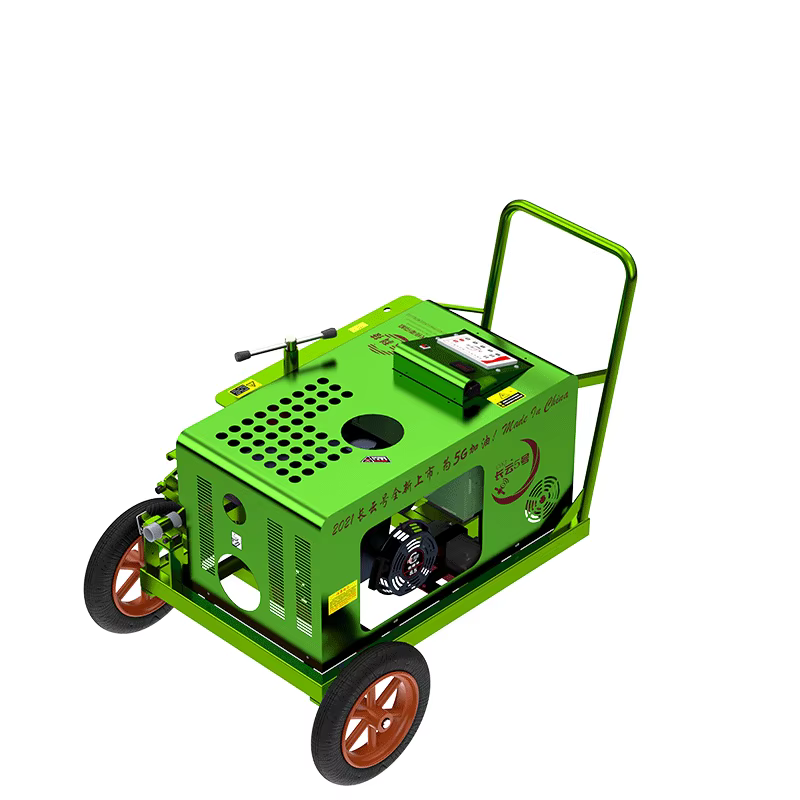

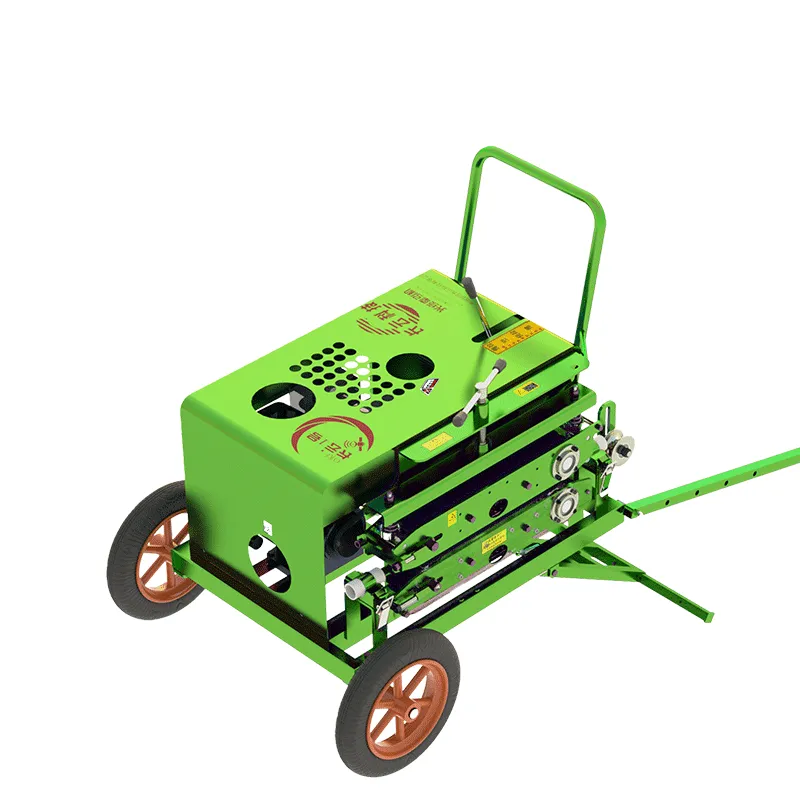

Changyun N7 optical cable tractor

★Product introduction
This machine has a compact and reasonable structure, excellent performance, smooth operation, easy movement, fast conveying speed, simple and convenient operation and maintenance, and ensures convenient and efficient cable construction in all aspects. The new
type of crawler transmission has a large pulling force. One machine is equivalent to the pulling force of about 5 people, which greatly improves the construction efficiency.
It is suitable for the construction of underground cable pipelines and the laying of long-distance optical cables and cables, such as the laying of municipal optical cables, instrument cables, and electrical control lines. During use, the machine always maintains stable cable routing, without overlapping or compressing cables; the track can quickly adjust the pre-tightening force, while making the pressure and tension on the cables uniform and flexible, without damaging the cables.

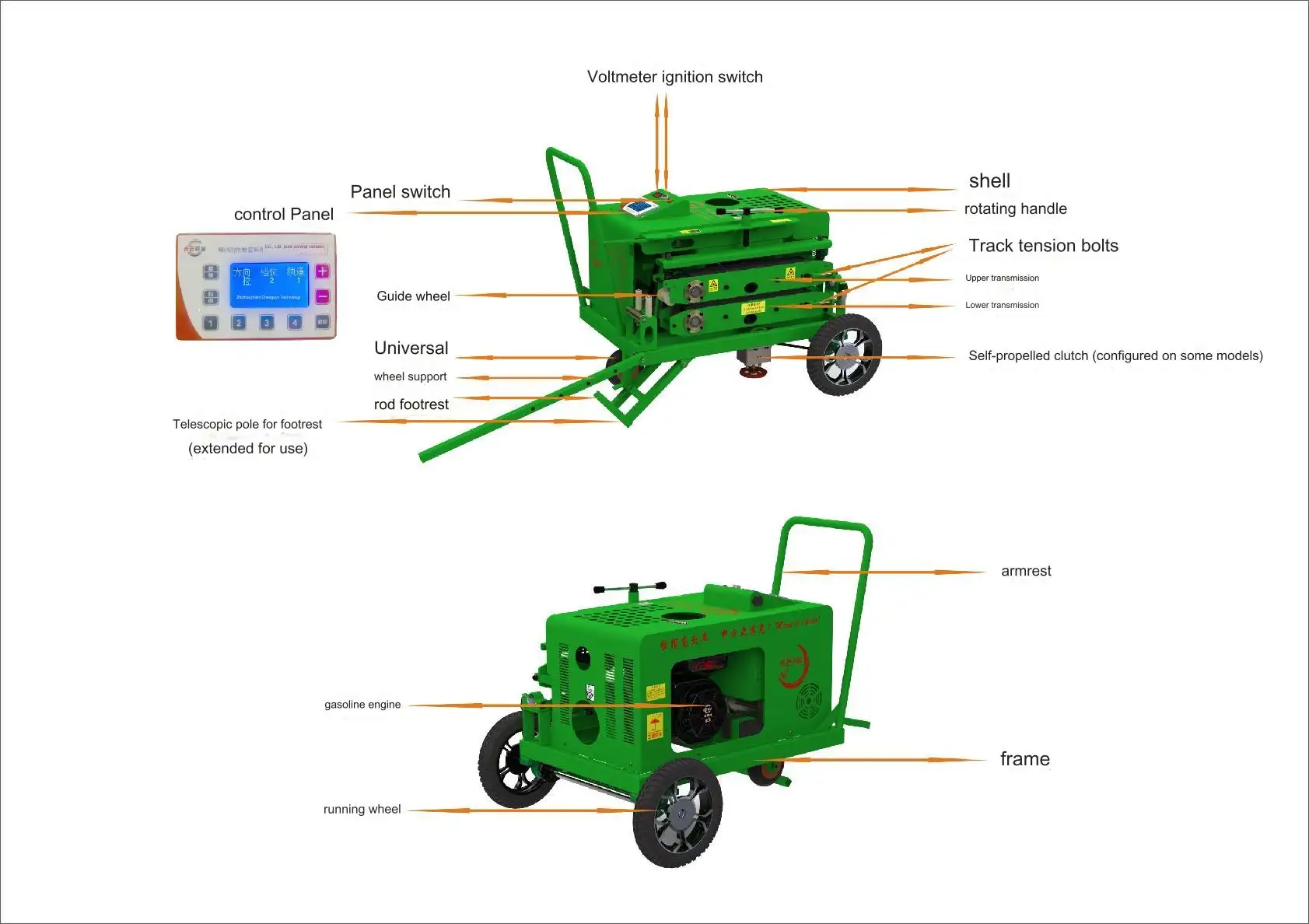

This machine is mainly composed of four parts:
generator, motor, transmission device and control system.

★Product features 1. The newly designed quick-pressing device can quickly realize the up and down movement of the upper track by simply turning the rotating handle to realize the pressing and relaxing functions.

2. DC motor, with stable performance, large torque and strong overload capacity; using a gasoline generator as the power source, the performance is stable and mature, and it is easy and reliable to use.
3. The control system realizes operation in both directions of "forward" and "reverse". The speed has 4 main gears. At the same time, "+" and "-" can be used to achieve stepless speed adjustment to meet the speed requirements under different working conditions.
4. Some models are equipped with remote controls to achieve remote control, which is convenient and fast.
5. The tractor and remote control can be used in FM groups without interfering with each other. It also has multiple joint control functions to achieve remote control. (Included with models equipped with remote control). 6. The transmission device adopts new crawler belt transmission, which has greater pulling force. 7. Install foldable support rods to balance the reaction force of the cables during machine operation and maintain the stability of the machine when transmitting cables. 8. Optional inverter can output AC220V alternating current to provide power for other tools. 9. Optional transformer. When AC220V power supply is available, external AC power supply + transformer can be used as the power source of the machine to achieve silent construction. 10. Machines equipped with the "automatic walking" function can walk automatically on the ground. People only need to control the direction, which is more labor-saving.
Company Profile
FAQ
1. who are we?
We are based in Ningxia, China, start from 2020,sell to Domestic Market(00.00%). There are total about 5-10 people in our office.
TFN T700CY Fiber Cable Hydraulic Blowing 8-22mm Cable Blowing Machine
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Faygo Union 4 Cavity Semi Auto Blow Molding Machine Semi Automatic Rotary Bottle Washing Machine
3.what can you buy from us?
Microtubule, Microduct Bundles, Silicon Core Tube
FBM03 Jet Standard Fiber Optical Cable Jetting Blowing Machine For Air Blowing Fiber Unit Blowing Into Micro Duct
4. why should you buy from us not from other suppliers?
Qitian Communication has always regarded product quality as the life of the enterprise, with excellence and continuous innovation as the driving force of enterprise development, to meet the market demand as the guidance, to the user satisfaction of 100% as
2023 Onefind WF900CBM air blowing machine 8~25mm cable fiber optic cable blowing machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese

Qitian


If you should be working in the PVC pipeline, wire, cable, or soluble fiber optic industry, you will need a dependable haul off machine which will help you attain high-quality manufacturing associated with services and products. Fortunately, Qitian has you covered along with their top-of-the-line haul-off machine designed for all your manufacturing needs.


This Qitian haul off machine is best for use within the manufacturing of PVC pipes, wires, and cables. Additionally, it is designed to manage the tough needs of fiber FTTX optic network for fiber use. It is a device of versatility and suits the manufacturing needs of several companies, that makes it a wise investment for just about any production center.

The operation of this haul off machine is straightforward and simple to work with. It offers a sturdy design which is durable and allows for a regular haul price through the entire manufacturing procedure. The Qitian haul off machine is made to deal with pipe cables of various kinds, including small to big diameters. This revolutionary product is a choice that is superb for high amount manufacturing that is also high-speed.


The device's design assists you to adjust the potent force of clamping, which helps to minimize the probabilities of material slipping or damage during manufacturing. This Qitian haul off machine is not hard to maneuver over the production flooring using its compact size and portability.


Within the device's surface, you will find an array of features which make it extremely efficient and effective. The haul off device uses frequency of a variety, making sure you'll be able to attain the speed which is correct for your production needs. Moreover, it features a touch of advanced control interface that simplifies the device's operation.


Finally, the Qitian haul off machine is built to final, due to its high-grade materials and construction being robust. This is an investment that is long-term and will serve you for quite some time in the future.
