GYFTA53 Double Jacket Double Armoured Direct Buried Outdoor FGYFTA53 Single Mode Frp Non-metallic 12 Core Fiber Optic Cable

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

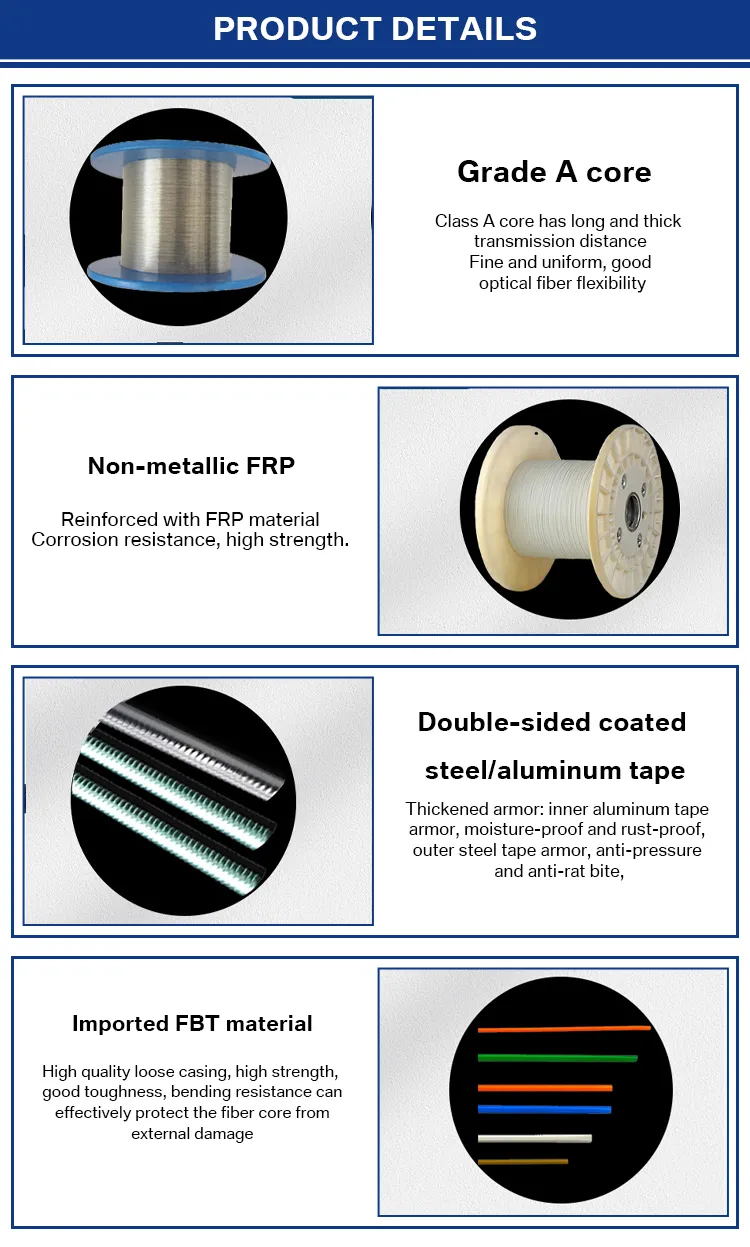

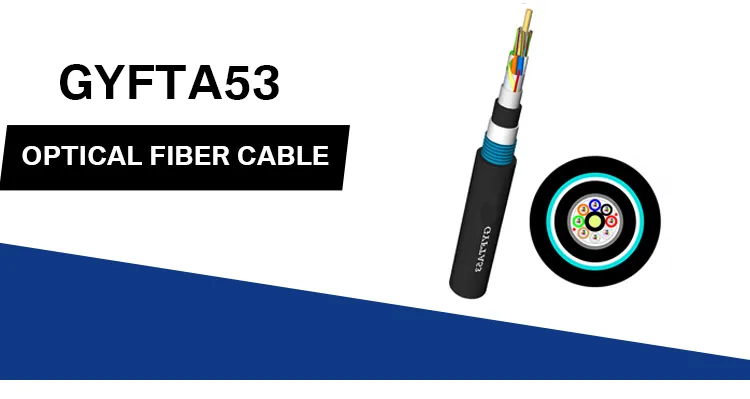

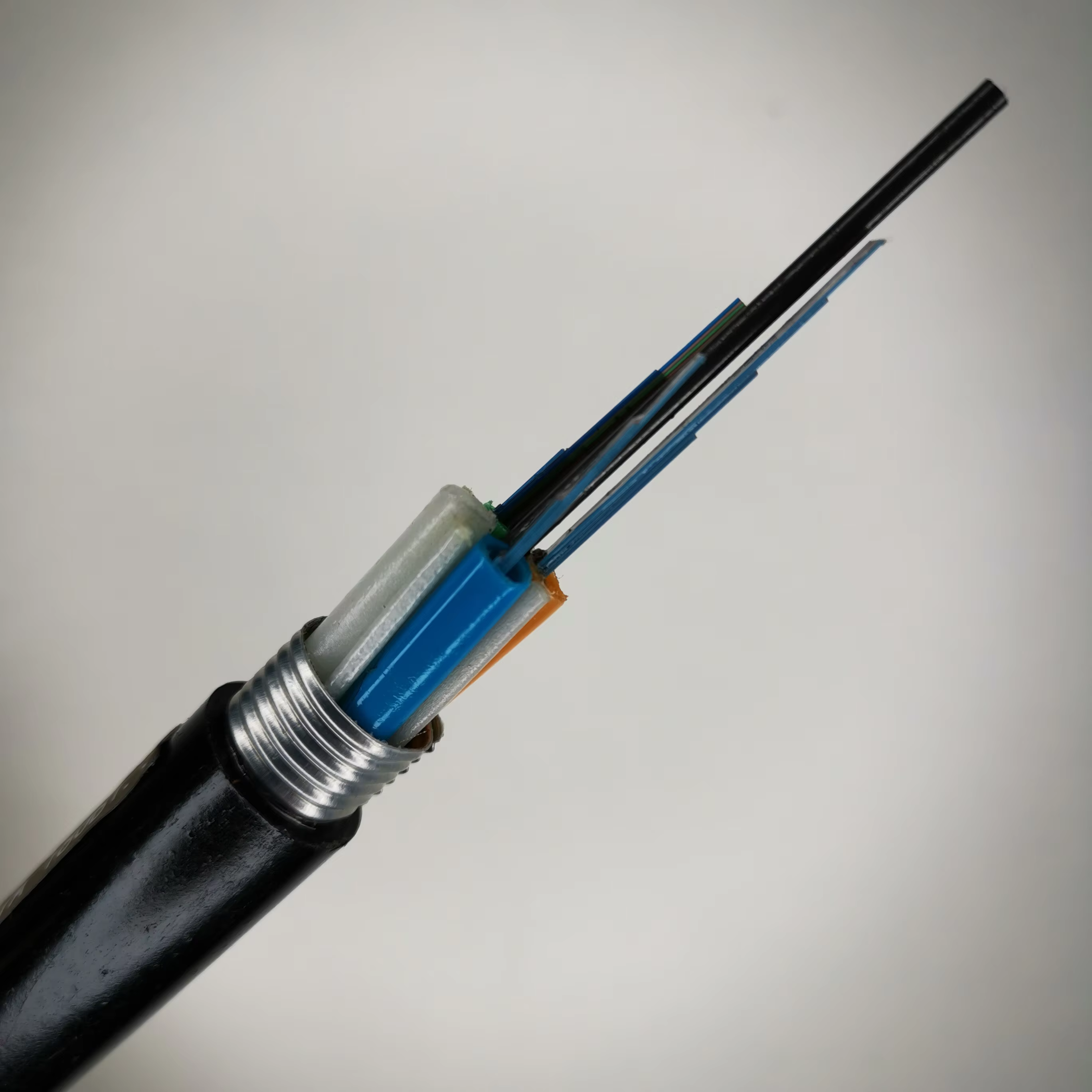

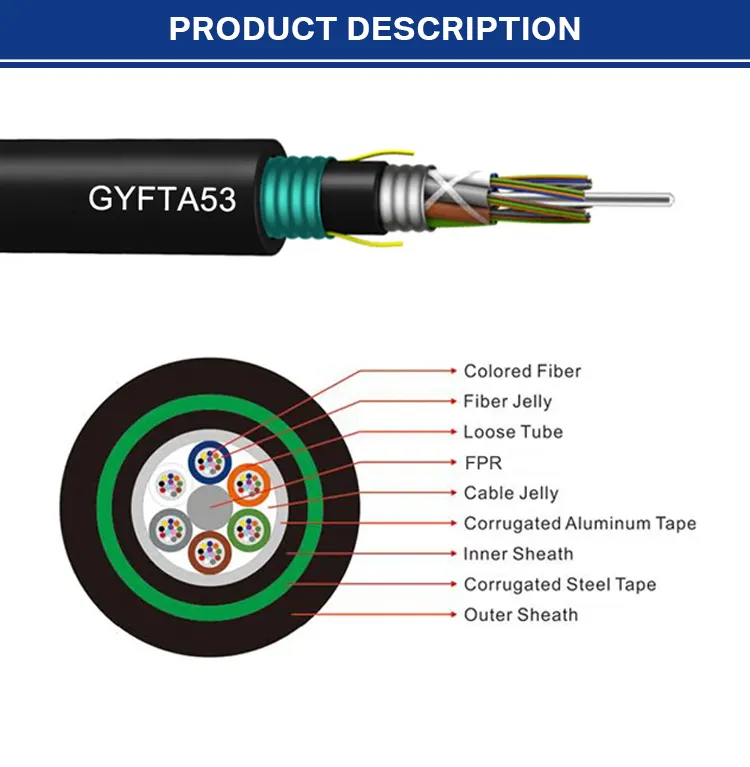

          The fibers,250μm‚are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water−resustant filling compound.A Fiber Reinforced Plastic locates in the center of core as a non–metallic strength member.The tubes‹and fillers› are stranded around the strength member into a compact and circular core.An Aliminum Polyethylene Laminate(APL) is applied around the cable core.Then the cable core is covered with a thin polyethylene (PE) inner sheath.which is filled with jelly to product it from water ingress.After a corrugated steel tape armor is applied,the cable is completed with a PE outer sheath.
Application
Duct⁄Aerial⁄Direct buried

Features:

1. Good mechnical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility


The following measures are taken to ensure the cable watertight:
1. Loose tube filling compound
2. 100% cable core filling
3. APL ,oisture barrier
4. PSP enhacing moisture−proof
5. Water−blocking material
Optical Characteristics


G.652
G.655
50/125μm
62.5/125μm



Attenuation(+20℃)
850nm


≤3.0
≤3.0



1300nm


≤1.0
≤1.0


1310nm
≤0.36
≤0.40





1550nm
≤0.22
≤0.23


Bandwidth (Class A)
850nm


≥500 MHz·km
≥200 MHz·km



1300nm


≥1000 MHz·km
≥600 MHz·km

Numerical Aperture

0.200±0.015NA


0.275±0.015NA
Cable Cut-off Wavelength

≤1260nm
≤1480nm



Technical Parameters
Fiber Count
Tubes
Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term
Bending Radius
Static/Dynamic




2~6
1
7
16.8
255
1000/3000
1000/3000
10D/20D




8~12
2
6
16.8




14~18
3
5
16.8




20~24
4
4
16.8




26~30
5
3
16.8




32~36
6
2
16.8




38~42
7
1
16.8




44~48
8
0
16.8




50~60
5
3
19.2
320




62~72
6
2
19.2
320




74~84
7
1
19.2
320




86~96
8
0
19.2
320




Storage/Operating Temperature : -40℃ to + 70℃

Qitian


Introducing the GYFTA53 Double Jacket Double Armored Direct Buried Outdoor FGYFTA53 Single Mode Frp Non-metallic 12 Core Fiber Optic Cable - the best answer for almost every market which will need a reputable fiber optic cable additionally heavy duty.


This cable features a double coating of defense along with each a jacket of double armored coating which offers added energy protection towards rough outdoor environments. The Qitian FGYFTA53 single mode along with non-metallic 12 core soluble fiber optic cable will hold up against harsh disorders, sprinkle, and various other rough disorders, making it best for direct interment in almost any sort of atmosphere outdoors.


The Qitian GYFTA53 benefits transferring substantial amounts of records over far away along with marginal reduction insurance policy organizations a 12-core fiber optic hair. The core is non-metallic exclusively developed towards minimize inform reduction while raising gear box performance while guaranteeing sound resistance. Utilizing this fiber cable optic, you will have the ability to leave that the details will normally stay reliable safeguarded.


The FGYFTA53 Single Mode Non-metallic 12 Core Fiber Optic Cable was developed towards fulfill taking advantage of the strictest market demands it is assessed towards give enhanced functionality in rough ecological disorders. The polymer is heavy duty coming from abrasion impact-resistant, guaranteeing hookup is lasting without the required for consistent substitutes.


Making use of the Qitian GYFTA53 Double Jacket Double Armored Direct Buried Outdoor FGYFTA53 Single Mode Frp Non-metallic 12 Core Fiber Optic Cable, you will appreciate better reliability adaptability in almost every request. This cable supplies connection trusted will not fall short or even rest under the best asking for disorders coming from army mining towards household treatments industrial.


This soluble fiber optic cable is terrific for any sort of request that might need a steady reliable recommendation towards a duration of around 5,000 meters. The Qitian GYFTA53 will be the optimal answer whether you have to attach telecommunication items or even give fast net towards a remote-control place.
