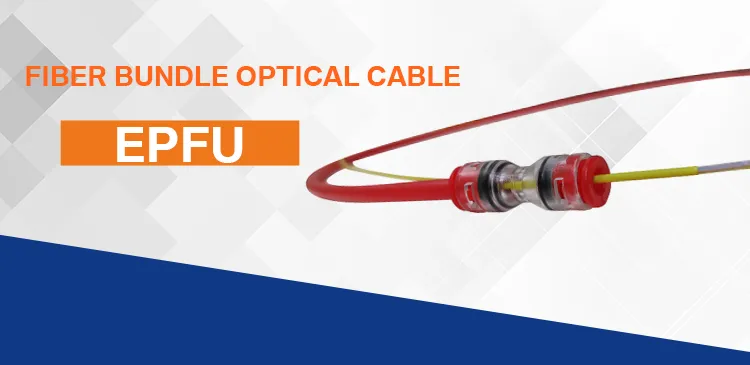

Enhanced Performance 2-Core Air Blown Optical Fiber Cable EPFU Fiber Unit with PVC Jacket for FTTH Networking Applications

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Qitian's Enhanced Performance 2-Core Air Blown Optical Fiber Cable EPFU Fiber Unit with PVC Jacket for FTTH Networking Applications is the option is perfect those selecting dependable, high-performance fiber is dietary cables. This cable product delivers performance is unparalleled is ideal for a number of networking applications featuring its enhanced functions.


Perhaps one of the most notable options that come with this soluble fiber cable is its design is 2-core that for increased flexibility and cable administration is enhanced. This enhances its suitability for FTTH installations where cables that are numerous materials should be accommodated in a place is limited.


The cable unit normally highly durable, due to the PVC jacket that surrounds the fibers, which supplies protection is excellent ecological facets like dampness, heat, and UV radiation. This added protection helps you to make sure that the cable can withstand harrowing conditions without setting up with damage performance dilemmas is significant.


The materials which are optical within the cable product get together seamlessly to provide you with improved performance that excels in delivering high-quality data and movie streaming. The dietary fiber composition enables fast data transmission rates, making the cable perfect for found in websites supply, community transmission, and also other multimedia applications.


In addition, the Enhanced Performance 2-Core Air Blown Optical Fiber Cable EPFU Fiber Unit with PVC Jacket for FTTH Networking Applications is power-efficient and has now attenuation low. This saves power use and assists to ensure that you will find minimal signal losings in transmission across long distances.


Qitian's Enhanced Performance 2-Core Air Blown Optical Fiber Cable EPFU Fiber Unit with PVC Jacket for FTTH Networking Applications is not difficult to install, because of its air-blown device. This particular aspect is unique the cable fiber units to be blown through the micro ducts or conduits using compressed air, a method is quick, simple, and efficient in cable deployment.

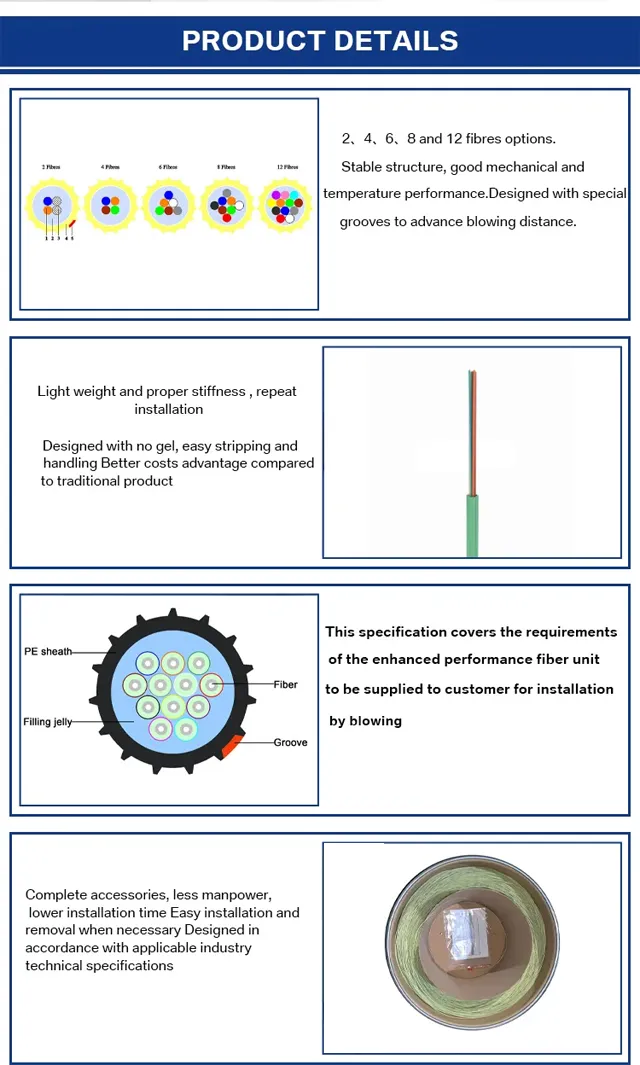

Specification

Technical parameter
Fibre Count
2 Fibres
4 Fibres
6 Fibres
8 Fibres
12 Fibres





Outer Diameter (mm)
1.15±0.05
1.15±0.05
1.35±0.05
1.50±0.05
1.65±0.05





Weight(g/m)
1.0
1.0
1.3
1.8
2.2





Min Bend radius(mm)
50
50
60
80
80





Temperature
Storage:-30℃ ~ +70℃ Operation:-30℃ ~ +70℃
Installation:-5℃ ~ +50℃





Cable service life
(estimate value)
25 years





Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is provedthat 2 fibres unit with 2
filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability





Air blowing property
Fibre Count
2 Fibres
4 Fibres
6 Fibres
8 Fibres
12 Fibres




Test equipment
PLUMETTAZ:UM25, ERICSSON:F, CATWAY:FBT-1.1




Standard duct
5.0/3.5 mm




Pressure
7bar / 10bar




Typical blowing distance
500m / 1000 m
500m / 1000m
500m / 1000m
500m / 1000m
500m / 800m




Typical blowing time
10 min/18 min
10 min18 min
12 min/ 18 min
13min/18 min
15 min /20 min




Mechanical property
Test
Standard
Parameters
Test Results



Tension
EN 18700 A1/501
IEC 60794-1-2-E1
Load is 1×W
Additional attenuation ≤0.05dB after test



Bend
IEC 60794-1-2--E11A
Diam 40mm×3turns 5 cycles at 20℃

Additional attenuation ≤0.05dB,after test



Crush
IEC 60794-1-2-E3
100 N, 60s
Additional attenuation ≤0.05dB,after test



All optical testing proceeded at 1550 nm



Order information
Fibre Count
Length(m)
Pan Size Φ×H(mm)
Weight (Gross) (kg)
2~4 Fibres
2000 m
φ510 × 200
8.0

4000 m
φ510 × 200
10.0

6000m
φ510 × 300
13.0
6 Fibres
2000 m
φ510 × 200
9.0

4000 m
φ510 × 300
12.0
8 Fibres
2000 m
φ510 × 200
9.0

4000 m
φ510 × 300
14.0
12 Fibres
1000 m
φ510 × 200
8.0

2000 m
φ510 × 200
10.0

3000m
φ510 × 300
14.0

4000 m
φ510 × 300
15.0
