4mm and 300m Fiberglass Continuous Cable Duct Coated Fiberglass Rodder for FTTH Use

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Qitian



4mm and Fiberglass that is 300m Continuous Duct Coated Fiberglass Rodder for FTTH utilize is a versatile and tool is reliable any fiber-to-the-home (FTTH) task. This fiberglass is coated effective at easily navigating through conduit and duct work, allowing users to quickly and efficiently install fiber optic cables at 4mm in diameter and 300m in length.


Made from top-notch fiberglass materials, this rodder is sturdy sufficient to withstand the rigors each and every installation task. The cable is design is constant a smooth and installation that seamless, because the coated fiberglass product decreases the chances of damage during use. Designed for simple portability and control, this Fiberglass Continuous Cable Duct Coated Fiberglass Rodder can very quickly be carried to simply about any task website. The look is handle that lightweight is easy-grip optimum control and convenience, allowing users carrying away make use of longer periods for the full-time without tiredness.


Whether you may be a dietary is seasoned installer is optic just starting, this method is simply a must-have for almost any FTTH task. Featuring its reliable and design is efficient this rodder afford them the ability doing something because this quickly sufficient downtime is minimal.


This Fiberglass Continuous Cable Duct Coated Fiberglass Rodder might be a cost-effective solution for every single installation task alongside its top-quality construction and performance is superior. This rodder is the selection is anybody that ideal in order to complete a project with limited funds alongside its affordable cost.


Qitian 4mm and Fiberglass that is 300m Continuous Duct Coated Fiberglass Rodder for FTTH Use is a top-quality, dependable and device is affordable beneficial to any FTTH installation task. Featuring its simple managing and construction is sturdy this rodder is an addition that essential virtually any installer's toolkit. Why wait? Order your Rodder is today that fiberglass making your installations easier and lots of other items efficient than formerly.





Product Description
Specification
Model Number
Fiberglass Duct Rod
Type
Fiberglass Duct Rod
Place of Origin
GUA
Brand Name
OEM
Use
FTTH
Warranty Time
1 year
Network
None
Product Type
FRP Rod
Line Length
50-200 meter
Rod Diameter:
4mm
Length Of Pulling Rod:
150M-200M

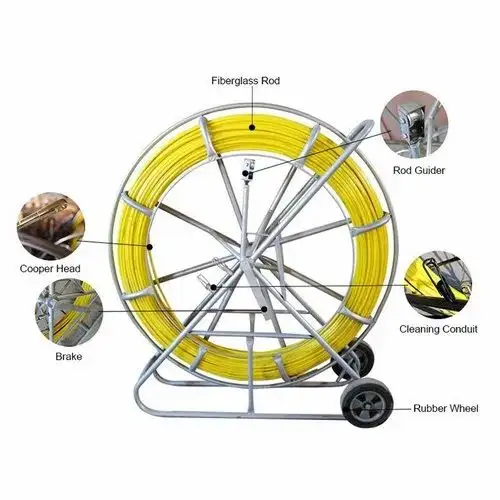

Structure
1. Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature.
2. Fiber glass rod outer: developed polymer
3. Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.
4. Copper wire inside is optional, which is for tracing easily or other professional usage.
5. Rolling bearing cage for mobility is strong and easy to use.
6. Feed device allows rod in and out smoothly

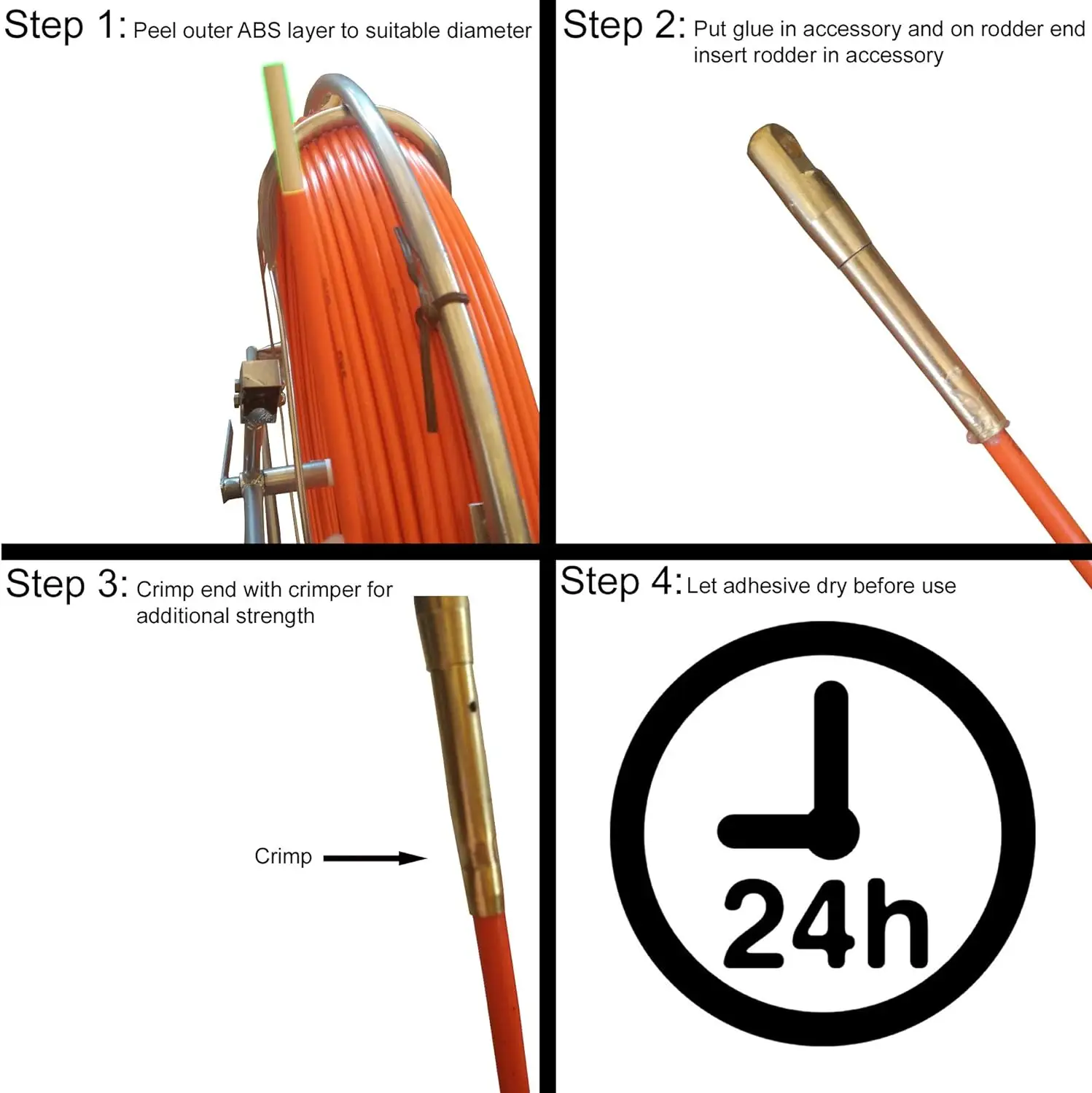

7. Rustproof bull-nose pulling tips with diverse accessories.

Frame And Reel Information
1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand. Tilting type
handle, convenient for pushing and pulling.
2. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
3. Frame color: yellow, other colors are available.


Main Specification
Cable Duct Rod Diameter: 4.5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm Rod Length:10-500mtrs Most popular Size:4.5x70m,
6*100m, 8*150m, 10*150m, 11*250m,12*250m, 14*250m,16*200m, etc.

Specification
Rod Diameter (mm)
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16


Rod Length (m)
30~500

Frame Spec.(mm)
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc

Wheel Diameter(mm)
300mm

Wall thickness of Metal Frame
2.2mm

Color
blue, yellow, red, white etc.
Material
Rod Inner
Extruded by fiber glass and high strength resin at high temperature


Rod Outer
High Density polyethylene coating

Iron Frame
Steel with high-temperature sprayed plastic or Spray coating

Wheel
rubber

Brake
Yes

Drawing head
copper
Physical Characters
Density
55g/m


Working temperature
-40°C to +80°C

Breaking tension
100kg

Bending Radius
295mm

Technology
Pultrusion
Packaging
Inside
plastic woven strip wind around the frame


Outside
Wooden pallet and Wooden box
