12mm HDPE Microduct End Plug Coupler Air Blown Micro Duct Optical Connector for Fiber Cable Direct Buried Application

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry
Products Description

Product Overview

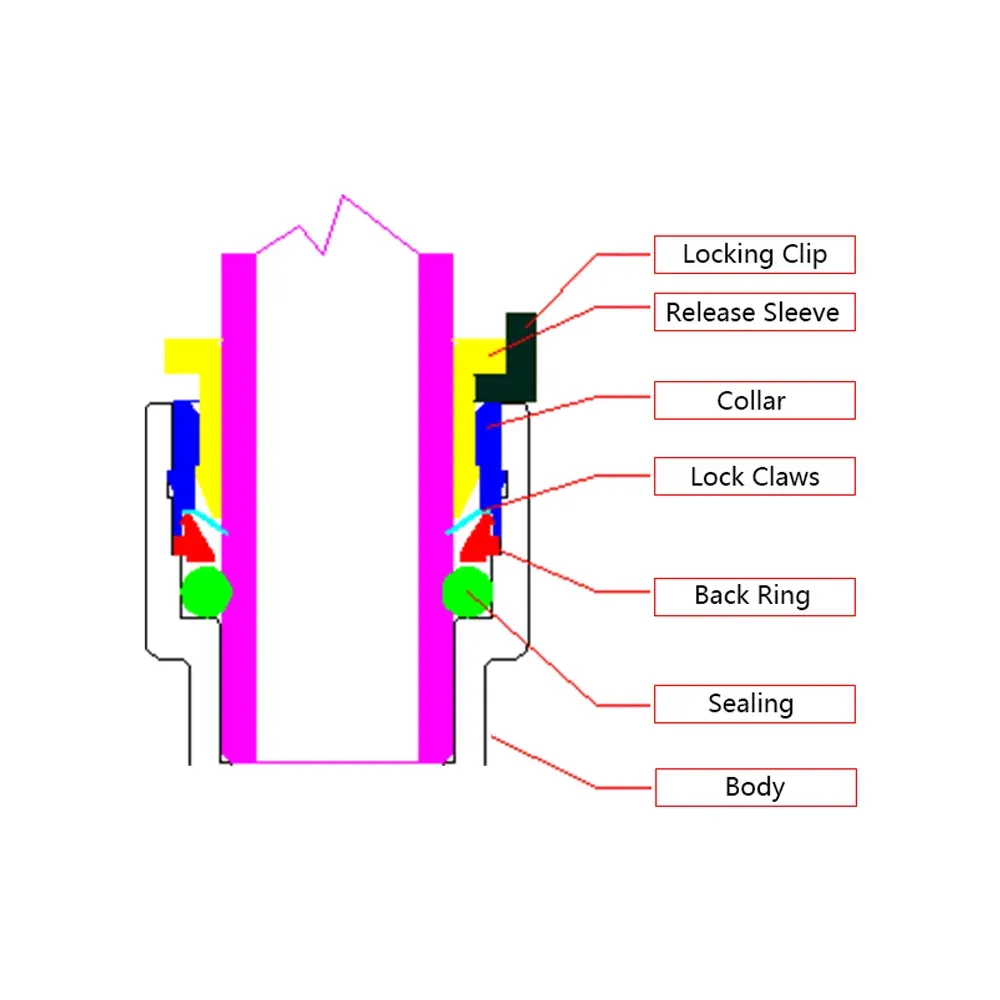

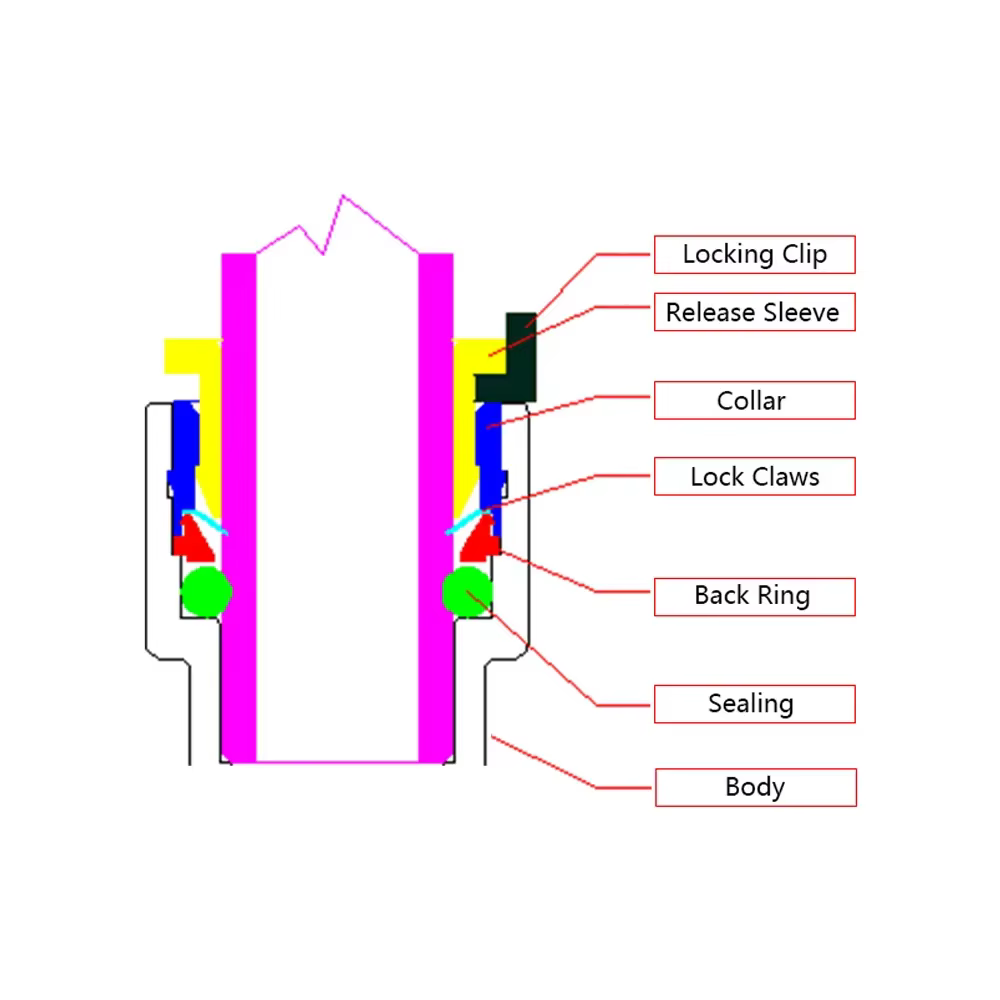

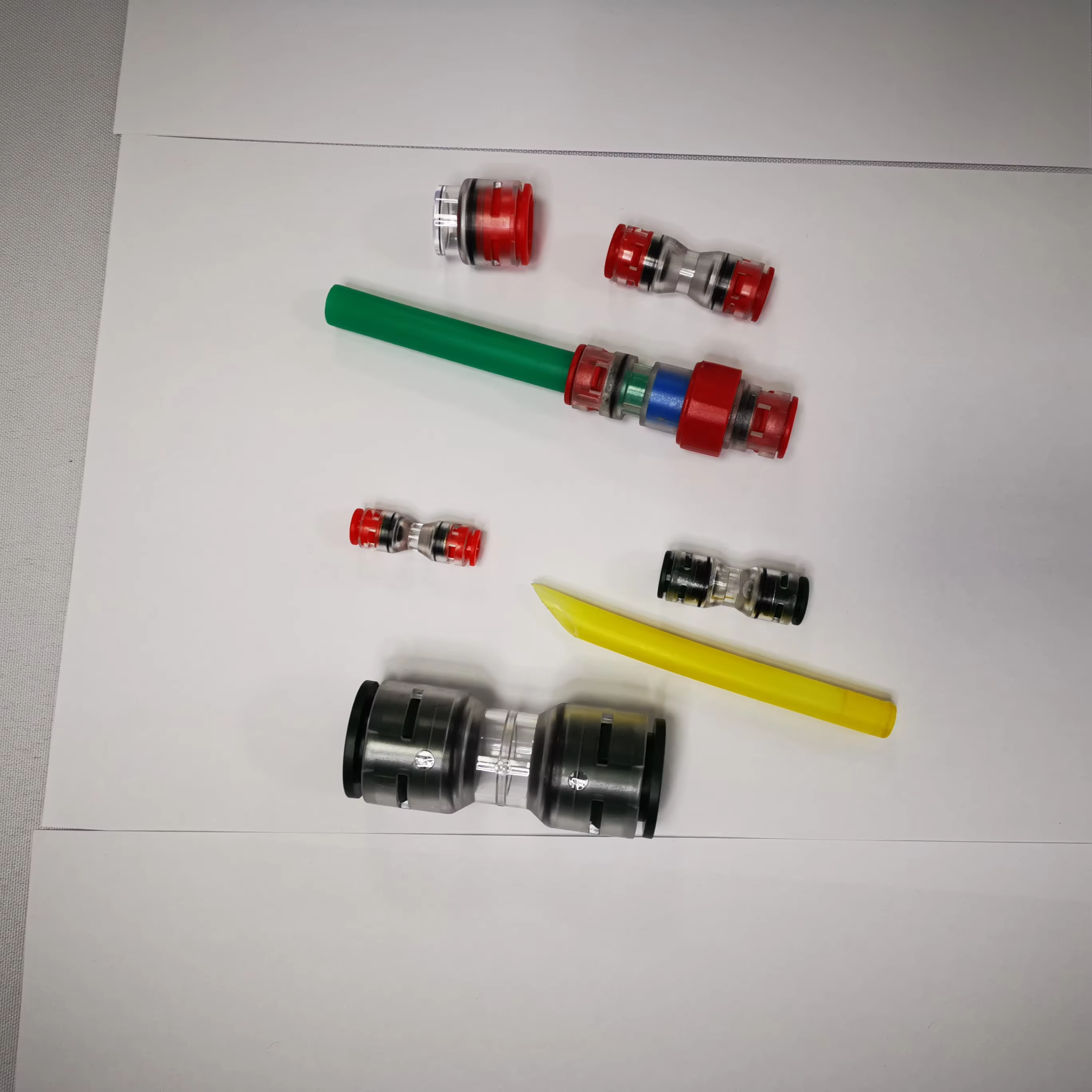

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.

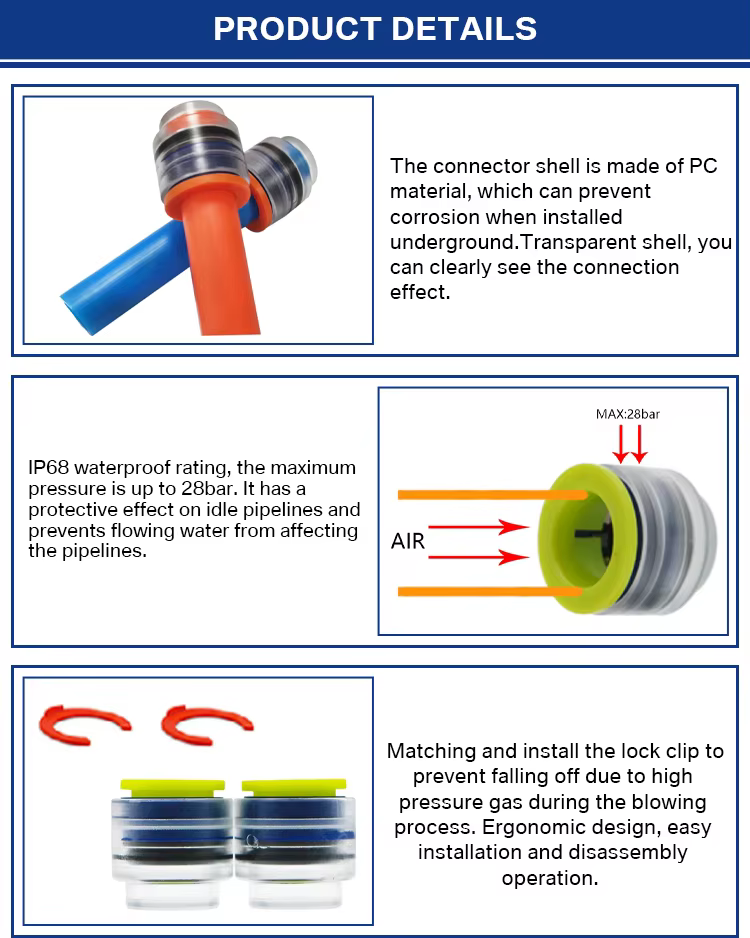

Product Advantages

- No metal parts
- Crystal clear transparent body
- Easy “push-in” installation - Rugged design for direct buried and above ground use
- Locking rings to prevent accidental removal of connector
Tube to connector
Polyethylene HDPE
Fluid
Air with blowing system
Working Pressure
20 bar
MAX. Pressure
28 bar
Userful life
25 years
Tube assembly
No tooling required
Water ingress test
0.5 bar during 168 hours
Working temperature
-45℃/+50℃
Transport and storage temperature
-10℃/+50℃
Installation temperature
-10℃/+50℃
Recommended blowing temperature
-15℃/+35℃
Outdoor exposure limit @Cetral Europe
12 months
Protection class
IP68
High pressure resistance(safety)
>50bar
According to Standards
CEI EN 50411-2-8,EN 50411-2-5
Related documents
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003
Related documents
ISO 3601,ISO 4397:1993(2000),ISO4399:1995
Company Profile
1.Q : Are you trading company or manufacturer? A : 70% of our products we manufactured and 30% do trading for customer service.
Air Blown Micro Duct Optical Connector Fiber Cable,Microduct End plug/End stop/End cap2.Q :How can you ensure the quality? A : Good question! We are a one-stop manufacturer, We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed lSO 9001 Quality Management System.
Air Blown Micro Duct Optical Connector Fiber Cable,Microduct End plug/End stop/End cap3.Q : Can you provide samples ? Is it free or extra? A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
Premier 4mm 6mm 8mm 10mm 12mm 14mm Mini Direct Buried End Plug Microduct End Stop Connector4.Q : How long is your delivery time ? A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5.Q: Can you do OEM? A: Yes , we can.
6.Q: What is your payment term ? A: Payment <= 4000usd="">= 4000USD, 30% TT in advance, balance before shipment.
7.Q: How we can pay? A: TT, Western Union , Paypal ,Credit Card and LC.
8.Q:Transportation? A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train.

QITIAN


The Qitian 12mm HDPE Microduct End Plug Coupler is a quality premium product ideal for direct buried applications, atmosphere blown duct of micro optical connector for fiber cable. The finish plug coupler is made from high-density polyethylene (HDPE) product, which is known because of its resistance to weather and UV radiation. This will allow it to be a choice that is ideal for outside installments.


The Qitian 12mm HDPE Microduct End Plug Coupler is compatible with 12mm micro ducts, which makes it a perfect fit for fiber installations. It is created to ensure a secure connection with tight two micro ducts, which helps you to care for the integrity concerning the fiber optic community. The coupler could be quite easy to set up, needing no tools which is often unique. Merely insert the ducts which are micro each region of the coupler and push them together until they click into place.


The Qitian 12mm HDPE Microduct End Plug Coupler is also atmosphere blown, which means that it could be used to install fiber optic cable with air beinf compressed. This may allow it to be a rather efficient solution which is also economical as air blown installation can reduce steadily the dramatically time and labor necessary for installation. The coupler can be designed to reduce steadily the danger of injury to the fiber optic cable installation, supplying added security and satisfaction.


Overall, the Qitian 12mm HDPE Microduct End Plug Coupler is a superb choice for anybody buying a top-notch and dependable end plug coupler for his or her fiber optic installation. Its superior construction and design make it an ideal choice for direct buried applications, atmosphere blown micro duct, and optical connectors. The Qitian 12mm HDPE Microduct End Plug Coupler is a must-have for those who trying to install a fiber optic system with its ease of installation and compatibility with 12mm micro ducts.
