FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector

  • Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector manufacture
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector factory
Product Description
Product description
  Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber types are supported. and each connector is color per industry standard requirments to aid in identification during and afger installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

Feature

1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance

Applicaiton

1.Used to open the FTTH fiber terminal end.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, maintenance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.

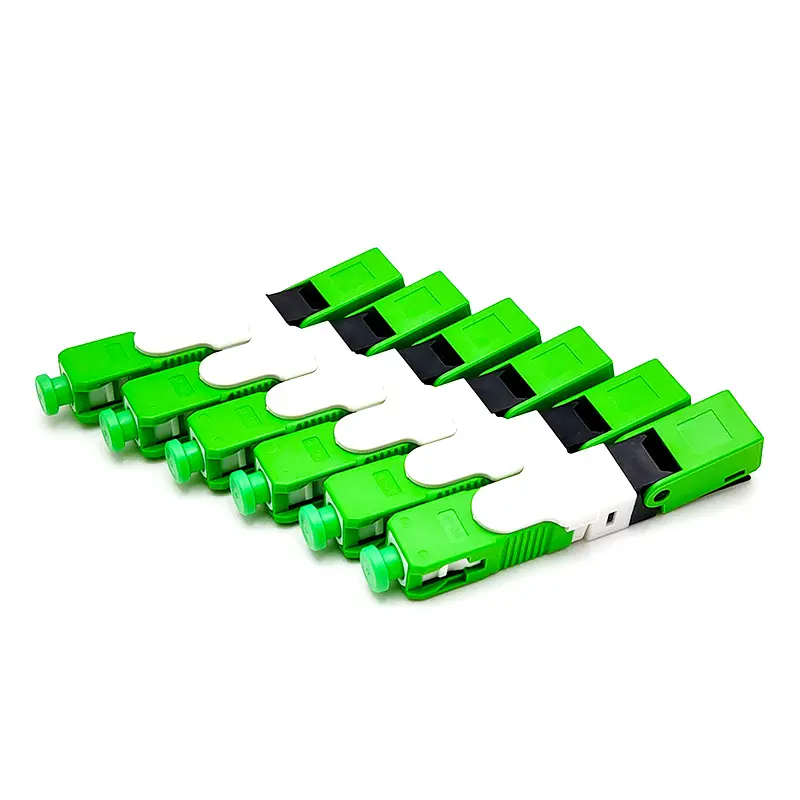

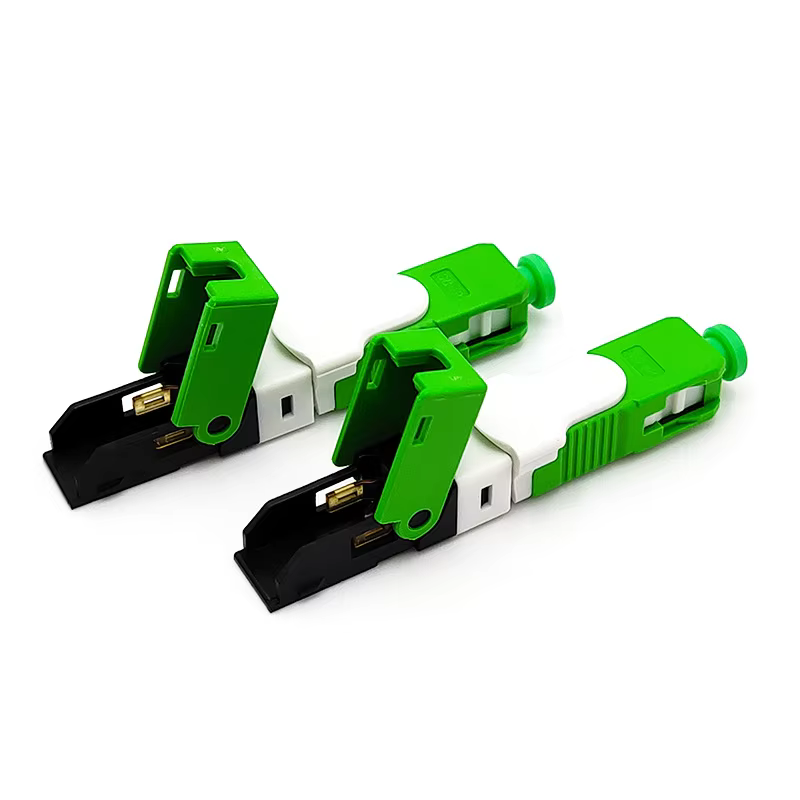

Products Details
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector details
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector manufacture
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector details
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector manufacture
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector manufacture

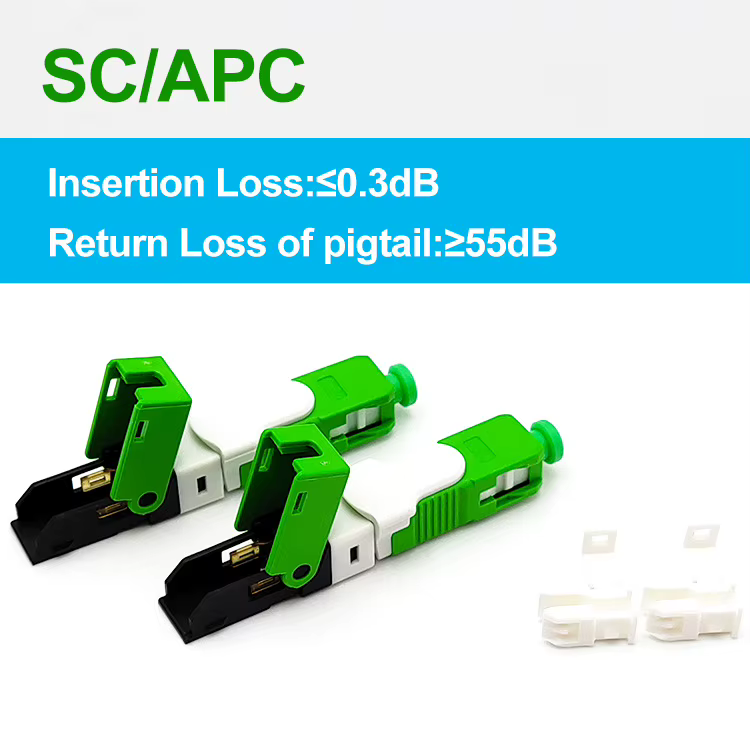

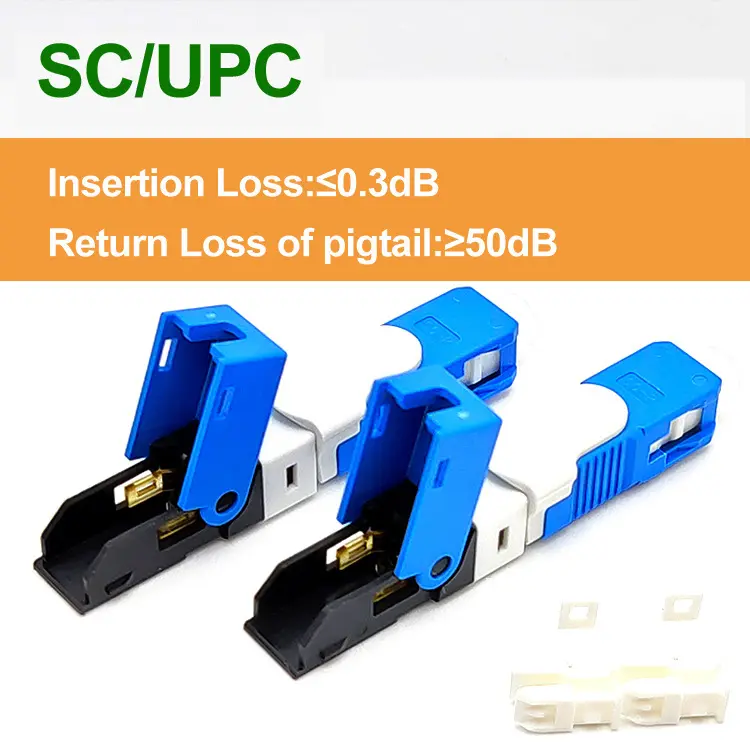

Fast Connector Specification



Mode
SM

MM


Polish
UPC
APC
PC



Insertion Loss
Typical ≤0.2dB
Maximum ≤0.3dB

≤0.25dB


Return Loss
≥50dB
≥65dB
≥35dB



Interchangeability
≤0.2dB



Repeatability
≤0.1dB



Durability
≤0.2dB (1000 times mating)



Tensile Strengh
> 10kg



Temperature
≤0.2dB (-40+85 sustain 100 hours)



Humidity
≤0.2dB (+25+65 93 R.H.100 hours)

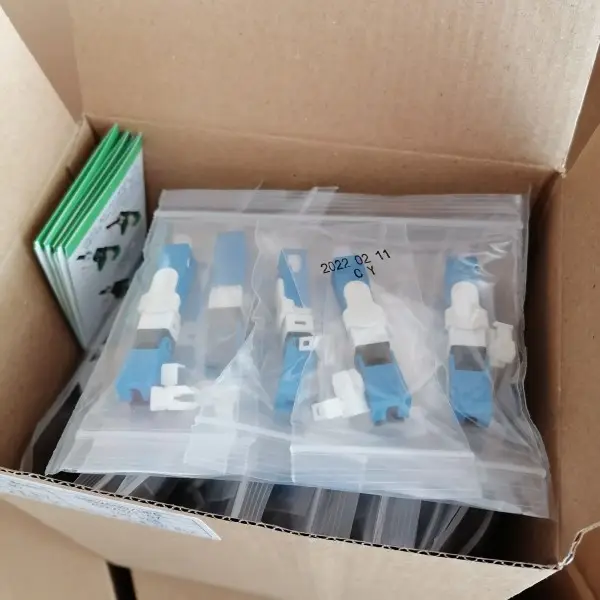

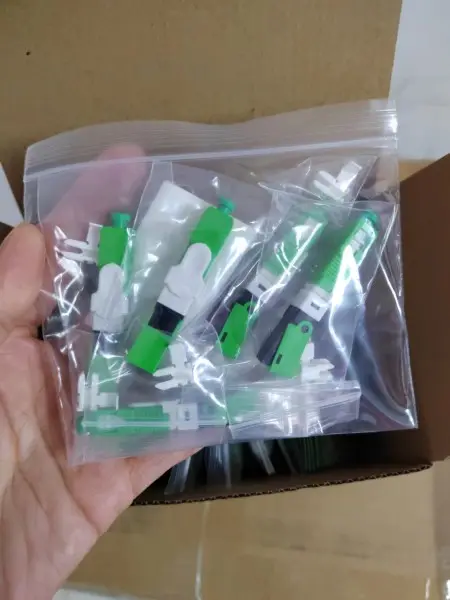

Packing & Delivery
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector details
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector supplier
Company Profile
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector factory
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector supplier
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector factory
FTTH Fiber Optic Adapter Quick Conector SC APC/UPCFast for Drop Cable Conector Rapido De Fibra Optica Quick Connector details
FAQ

1.Q: Are you trading company or manufacturer? A: 70% of our products we manufactured and 30% do trading for customer service.

2.Q: How can you ensure the quality? A: Good question! We are a one-stop manufacturer, we have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed lSO 9001 Quality Management System.

3.Q: Can you provide samples? Is it free or extra? A: Yes, after price confirmation, we could offer the free sample, but the shipping cost need pay for by your side.

4.Q: How long is your delivery time? A: In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.

5.Q: Can you do OEM? A: Yes, we can.

6.Q: What is your payment term? A: Payment <= 4000usd="">= 4000USD, 30% TT in advance, balance before shipment.

7.Q: How we can pay? A: TT, Western Union, PayPal, Credit Card and LC.

8.Q: Transportation? A: Transported by DHL, UPS, EMS, FedEx, Air freight, Boat and Train.


Qitian


Offering the FTTH Fiber Optic Adapter Quick Connector SC APC/Upcast for Drop Cable Connector Rapido De Fibra Optica Quick Connector the goods best for swift and simple lose hookups. Magnificently produced along with simpleness of utilization in mind, this adapter features a building and development along with scissor- style reliable for wire firing.


This adapter benefits made use of in strict places and rough settings including its own heavy-duty concept and sleek. Created towards tolerate one of the absolute most difficult ailments, the Qitian FTTH Fiber Optic Adapter Quick Connector SC APC/UPC is made with high-grade products that make sure dependability and efficiency is heavy duty.


The swift Connector is great for made use of in FTTH (Fiber right into the true residence) and FT Tx (Fiber towards the x) systems and it is additionally appropriate along with all of specification dimensions of drop cable televisions. Its own simple concept permits Quick wire uncomplicated, aiding your spare attempt and opportunity during the course of installment.


The Qitian FTTH Fiber Optic Adapter Quick Connector SC APC/UPC is available in each SC APC and SC UPC variants, helps make it achievable for you towards choose the appropriate kind towards usually comply with your special requirements. and it happens developed along with a dirt cover to provide help guard the Connector coming from dirt, in addition to various other outside aspects, for that reason making relationship is optimum down the road.


Using this Quick Connector is simple - merely place the wire into the Connector, push down in the launch, and bar. This relationship approach eliminates the require for splicing or even crimping, producing the installment general swift and hassle-free.


The Qitian FTTH Fiber Optic Adapter Quick Connector SC APC/UPC is a product superior and produced towards deliver premium efficiency and efficiency. Produced along with higher amount innovation, this swift Connector provides accuracy of very regular efficiency each time, that makes it an essential for each DIY installers and specialist.
