Tube to connector |
Polyethylene HDPE |
Fluid |
Air with blowing system |
Working Pressure |
20 bar |
MAX. Pressure |
28 bar |
Userful life |
25 years |
Tube assembly |
No tooling required |
Water ingress test |
0.5 bar during 168 hours |
Working temperature |
-45℃/+50℃ |
Transport and storage temperature |
-10℃/+50℃ |
Installation temperature |
-10℃/+50℃ |
Recommended blowing temperature |
-15℃/+35℃ |
Outdoor exposure limit @Cetral Europe |
12 months |

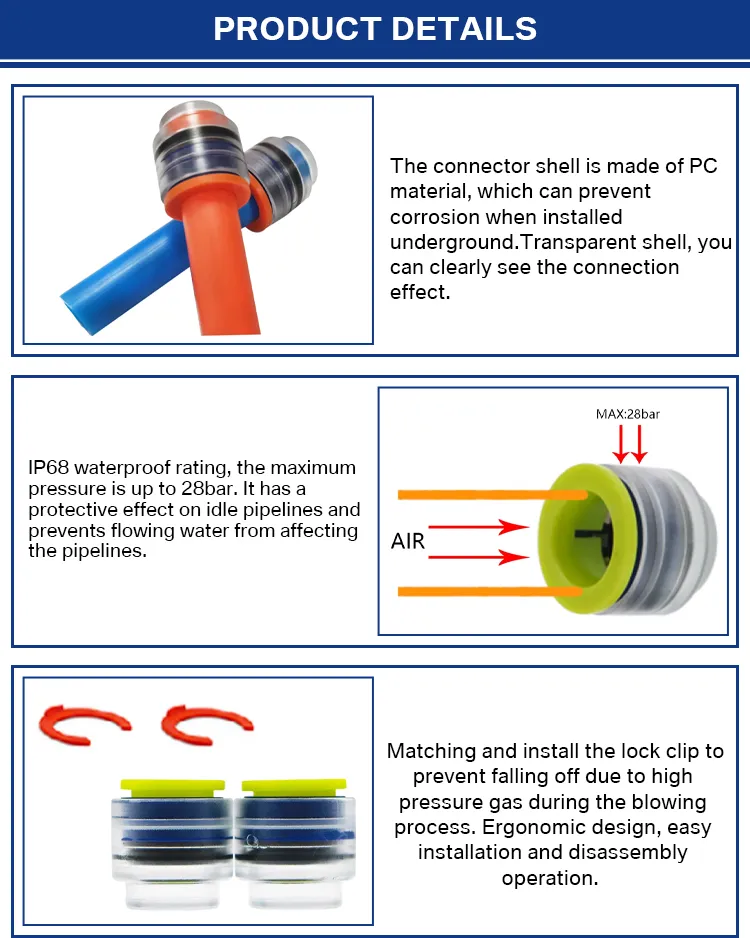

Protection class |
IP68 |
High pressure resistance(safety) |
>50bar |
According to Standards |
CEI EN 50411-2-8,EN 50411-2-5 |
Related documents |
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Related documents |
ISO 3601,ISO 4397:1993(2000),ISO4399:1995 |
QITIAN

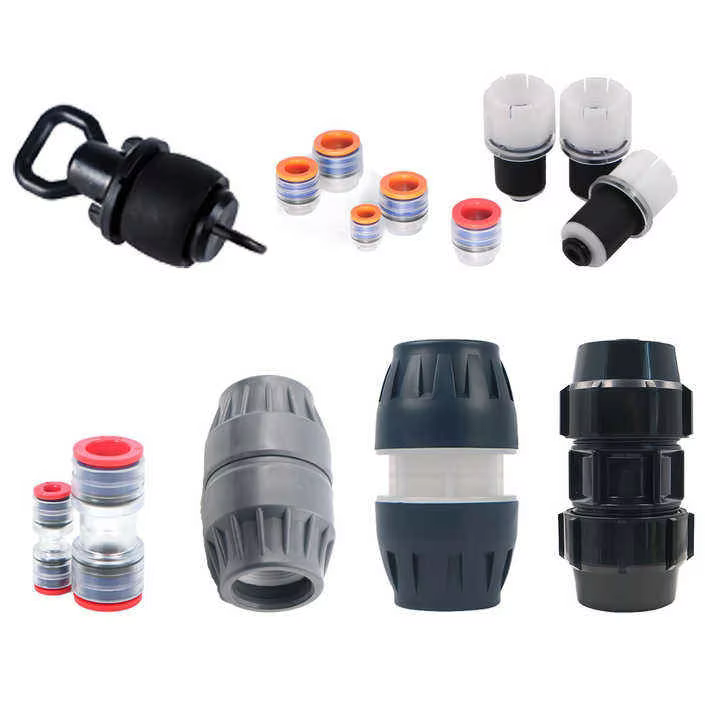

The Qitian 12mm HDPE Microduct End Plug Coupler is a quality premium product ideal for direct buried applications, atmosphere blown duct of micro optical connector for fiber cable. The finish plug coupler is made from high-density polyethylene (HDPE) product, which is known because of its resistance to weather and UV radiation. This will allow it to be a choice that is ideal for outside installments.
The Qitian 12mm HDPE Microduct End Plug Coupler is compatible with 12mm micro ducts, which makes it a perfect fit for fiber installations. It is created to ensure a secure connection with tight two micro ducts, which helps you to care for the integrity concerning the fiber optic community. The coupler could be quite easy to set up, needing no tools which is often unique. Merely insert the ducts which are micro each region of the coupler and push them together until they click into place.
The Qitian 12mm HDPE Microduct End Plug Coupler is also atmosphere blown, which means that it could be used to install fiber optic cable with air beinf compressed. This may allow it to be a rather efficient solution which is also economical as air blown installation can reduce steadily the dramatically time and labor necessary for installation. The coupler can be designed to reduce steadily the danger of injury to the fiber optic cable installation, supplying added security and satisfaction.
Overall, the Qitian 12mm HDPE Microduct End Plug Coupler is a superb choice for anybody buying a top-notch and dependable end plug coupler for his or her fiber optic installation. Its superior construction and design make it an ideal choice for direct buried applications, atmosphere blown micro duct, and optical connectors. The Qitian 12mm HDPE Microduct End Plug Coupler is a must-have for those who trying to install a fiber optic system with its ease of installation and compatibility with 12mm micro ducts.
